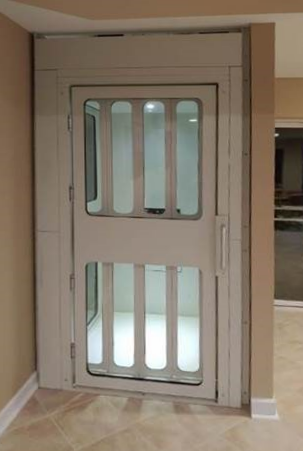

Crest Enclosed Elevator
The Crest Enclosed Elevator can be installed in an elevator hoistway or in an optional enclosure providing you affordable and safe travel between floors of your home. The Crest Enclosed can accommodate a wheelchair and provides several options for entry/exit. There is no need for a pit nor a machine room on this battery powered, modern elevator.
Included Features:
Call for Shipping Price
Included Features:
-
GENERAL:
- Travel to 21' on 3-stop units at 15 fpm
- Capacity: 500 lbs
- Extruded 6063 grade aluminum track
- Dual winding drum drive with ¼" aircraft cables – 7,000 lb breaking strengths
- Maximum stops: 4
- Installed in hoistway/enclosure
- Fold down car seat
- Finish: RAL 9002 powder coated with clear vision panels
- Automatic lighting system
- 36” wide car door opening (except for 90 degree applications)
- Single entry or 90 degree entry configurations
- Battery powered with charger
- Automatic operation
- RF wireless call stations
- Diagnostic indicator (LED)
- Emergency stop and alarm
- Slack cable device
- Car door switch
- Honeywell door interlock
- Phone
CAR:
CONTROLS:
SAFETY DEVICES:
Call for Shipping Price
Applications
Residential
Capacity
500 lb
Maximum Travel Distance
31
Speed (per minute)
15'
Minimum Overhead Required
90"
Drive
Travels with Car
Motor/Pump
DC Motor
Warranty
2 year battery warranty – 3 year warranty on all other items.
Type
Dual Winding Drum
Cab Heights
76
Power Requirement
110 VAC 2A
Pit Depth
Pit Not Required
Emergency
Emergency Stop, Telephone in Car
Safety
LED Light in Car, Non-Slip Floor, Safety Pan, Slack Cable
Max Landings
4
